Release mbx2svg , A tool convert MindBoard data into SVG

I created this converter mbx2svg for MindBoard / MindBoard 2019.

Currently stop subscription entry for MindBoard and MindBoard 2019 as temporary. Unless subscription users, it's impossible export your MindBoard data to PDF. I wonder expect this tool help this issue.

Usage

Before conveting your mindboard data, in order to build mbx2svg executable binary. It's required JVM 17.

I tested at this env:

$ java -version
openjdk version "17.0.9" 2023-10-17
OpenJDK Runtime Environment (build 17.0.9+9-Ubuntu-122.04)
OpenJDK 64-Bit Server VM (build 17.0.9+9-Ubuntu-122.04, mixed mode, sharing)

Step 1:

$ git cloen https://github.com/mindboard/mbx2svg.git

Step 2:

$ cd mbx2svg

Step 3:

$ ./gradlew bootJar

Building has finished, you can get the executable jar binary in the build/libs/mbx2svg-0.1.jar.

Step 4:

Let's convert the example file. There is a demo mbx file in the Demo/example.mbx.

$ java -jar build/libs/mbx2svg-0.1.jar Demo/example.mbx -o example.svg

Result a SVG file is an example.svg .

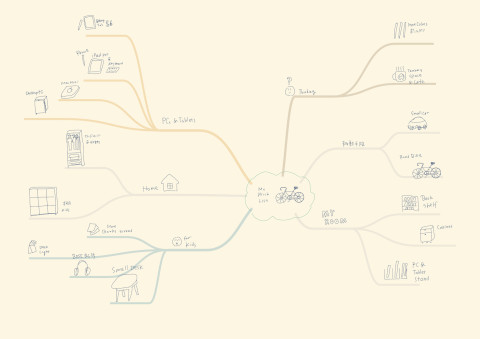

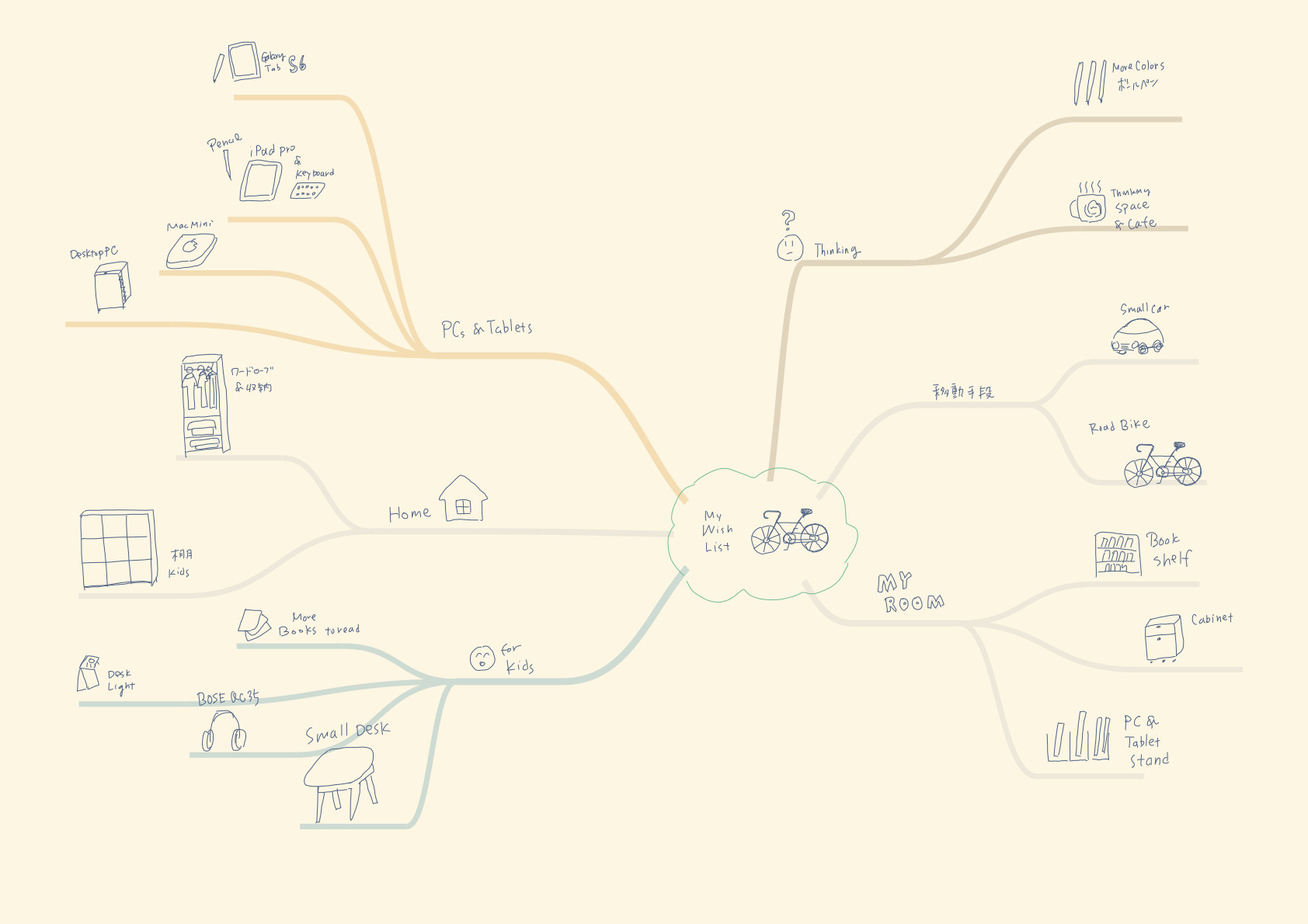

Like this: (Large)

example.svg

This tool can convert files that is exported (to Google Drive and download them in your local pc) from MindBoard / MindBoard 2019 apps.

That's all.
